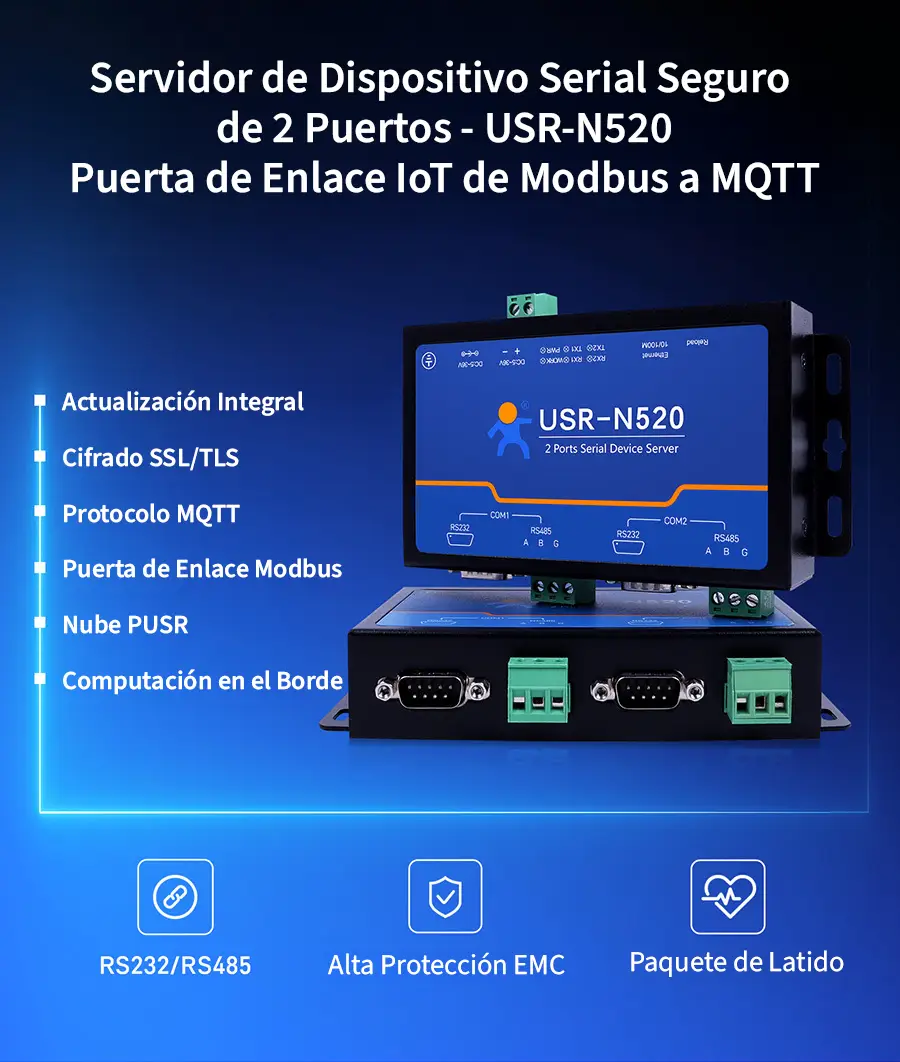

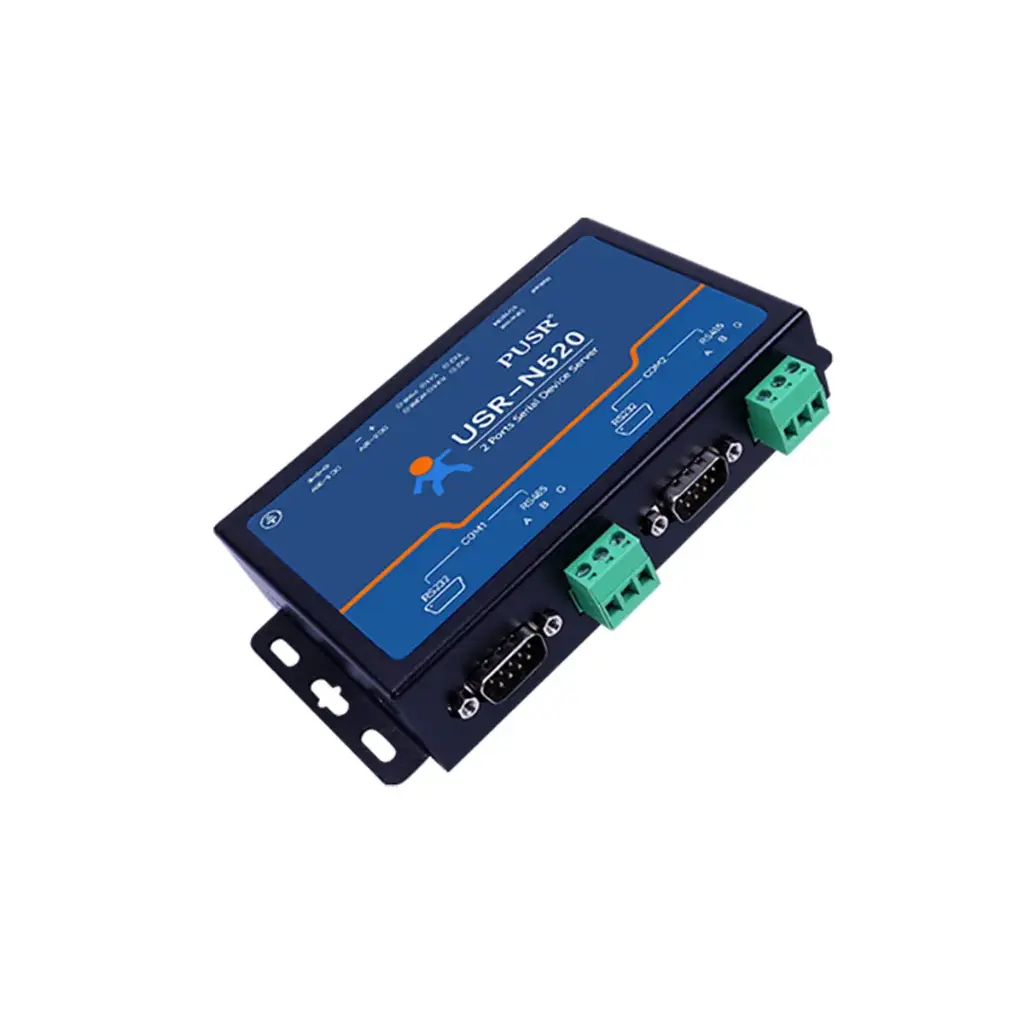

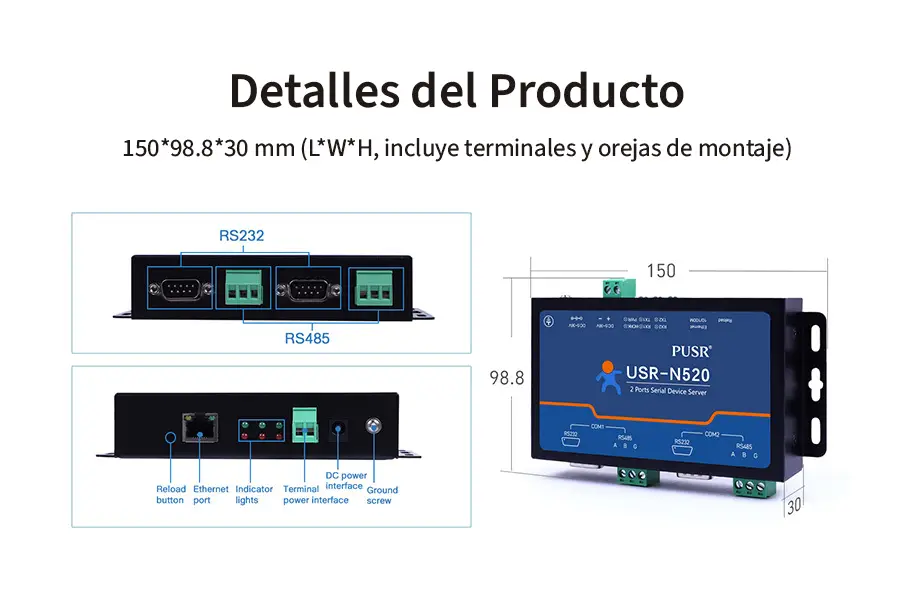

150*98.8*30 mm (L*W*H, including terminals and mounting ears)
Installation
Panel mounting
Ground Screw
1
Operating
Temperature
-40~85℃
Storage Temperature
-40~105℃
Operating Humidity
5%～95% RH(non-condensing)
Storage Humidity
5%～95% RH(non-condensing)
Certifications
CE/FCC/ROSH
Interface
Parameters
Ethernet Port Spec.
RJ45, 10/100Mbps, auto MDI/MDIX
Ethernet Port No.
1
Serial signals
RS232: RXD, TXD, GND, RTS, CTS
RS485:A+，B-,GND
Serial Port No.
2
Serial Baud Rate
600-230.4K(bps)
Data Bit
7, 8
Parity
None, Even, Odd
Flow Control
None, RTS/CTS (RS-232 only), XON/XOFF
RS-485 Pull-up and
Pull-down Resistor
2.2KΩ
Hardware
Protection
ESD-IEC61000-4-2
Level 4
Air±15KV, contact±8KV
Surge-IEC61000-4-5
level 3
±2KV
EFT-IEC61000-4-4
Level 3
±2KV
Software
Parameters
Network Protocol
IP/TCP/UDP/ARP/ICMP/IPV4/DHCP/DNS
IP Mode
Static IP, DHCP

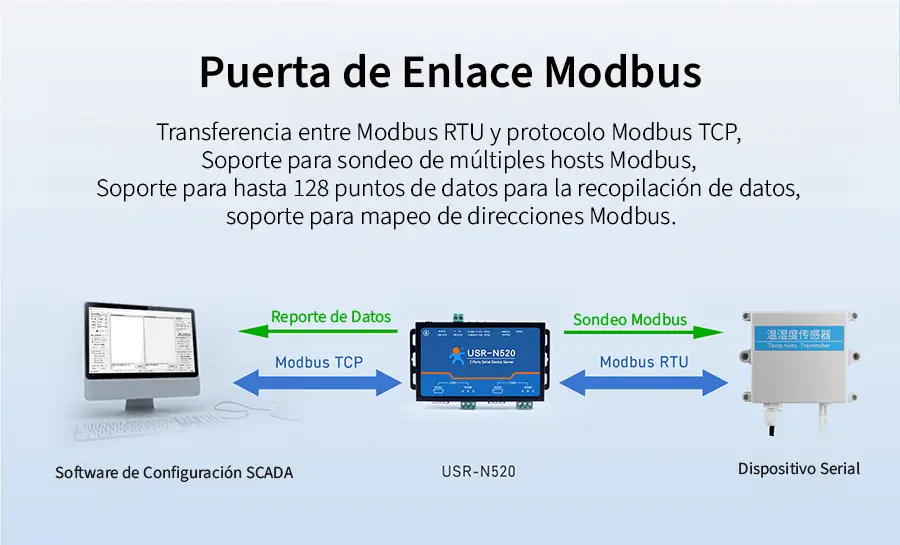

Modbus Gateway
Support
Websocket
Support
HTTP Client
Support
UDP Broadcast
Support
User Configuring
Setup utility, webpage, AT commands
Serial Packets Cache
Dynamic packet cache. For example:
When the packet length is 10 byte, the serial port can cache
450 packets(4.5KB). When the packet length is 1460 bytes, the serial port can
cache 10 packets(14.6KB).
Ethernet Packets
Cache
48Kbyte
Item
Parameter
Description
Hardware
Parameters
Input Voltage
DC 5.0~36.0V
Input Current
67mA @12V
Dimensions
150*98.8*30 mm (L*W*H, including terminals and mounting ears)
Installation
Panel mounting
Ground Screw
1
Operating
Temperature
-40~85℃
Storage Temperature
-40~105℃
Operating Humidity
5%～95% RH(non-condensing)
Storage Humidity
5%～95% RH(non-condensing)
Certifications
CE/FCC/ROSH
Interface
Parameters
Ethernet Port Spec.
RJ45, 10/100Mbps, auto MDI/MDIX
Ethernet Port No.
1
Serial signals
RS232: RXD, TXD, GND, RTS, CTS
RS485:A+，B-,GND
Serial Port No.
2
Serial Baud Rate
600-230.4K(bps)
Data Bit
7, 8
Parity
None, Even, Odd
Flow Control
None, RTS/CTS (RS-232 only), XON/XOFF
RS-485 Pull-up and
Pull-down Resistor
2.2KΩ
Hardware
Protection
ESD-IEC61000-4-2
Level 4
Air±15KV, contact±8KV
Surge-IEC61000-4-5
level 3
±2KV
EFT-IEC61000-4-4
Level 3
±2KV
Software
Parameters
Network Protocol
IP/TCP/UDP/ARP/ICMP/IPV4/DHCP/DNS
IP Mode
Static IP, DHCP
Modbus Gateway
Support
Websocket
Support
HTTP Client
Support
UDP Broadcast
Support
User Configuring
Setup utility, webpage, AT commands
Serial Packets Cache
Dynamic packet cache. For example:
When the packet length is 10 byte, the serial port can cache
450 packets(4.5KB). When the packet length is 1460 bytes, the serial port can
cache 10 packets(14.6KB).
Ethernet Packets
Cache
48Kbyte
